Trusted by Bars, Restaurants and Breweries Since 1991
Take It To The End of The Line
Pacific Beer Equipment’s renowned high-tech Draught Foam Control device (Beer FOBs), the DFC 9500 / DFC 9600, stops beer flow immediately after a keg empties, both at the key and the tap. This eliminates the spitting and spraying that usually happens when a keg “blows”. The DFC 9500 / DFC 9600 keeps the supply lines full of beer, even when a keg blows, resulting in instant beer from a freshly tapped keg.
That's right — no more time and money is wasted pouring off foam in order to get to the good stuff.
Drain Your Keg, Not Your Wallet
Savings for businesses are astronomical. Independent testing by various North American Breweries has shown the DFC 9500 / DFC 9600 saves an average of one pitcher of beer per keg on a typical long-draw run, much greater savings for stadiums, airports, and hotels. Given that there are approximately 40 pitchers in a keg and based on a volume of 40 kegs per week - bars, pubs, clubs and restaurants would save one keg a week. That's 52 kegs a year!
Owners see their return on investment very quickly.

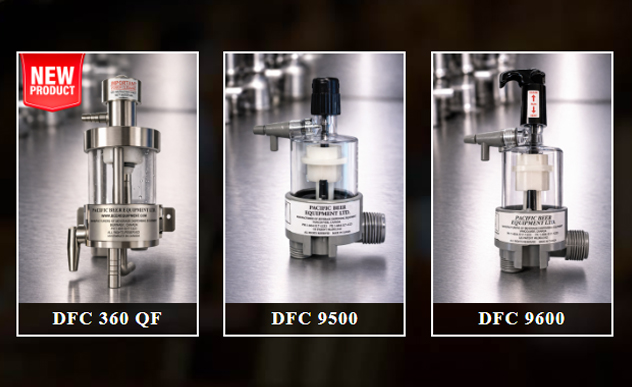

Draught Beer Foam Control (Beer FOB) Systems
Features
- Manufactured using high-quality Engineering Grade plastics with design recommendations from the Canadian Plastics Institute.
- Extremely durable commercial design.
- Available in five different base configurations to fit most draught beer systems.

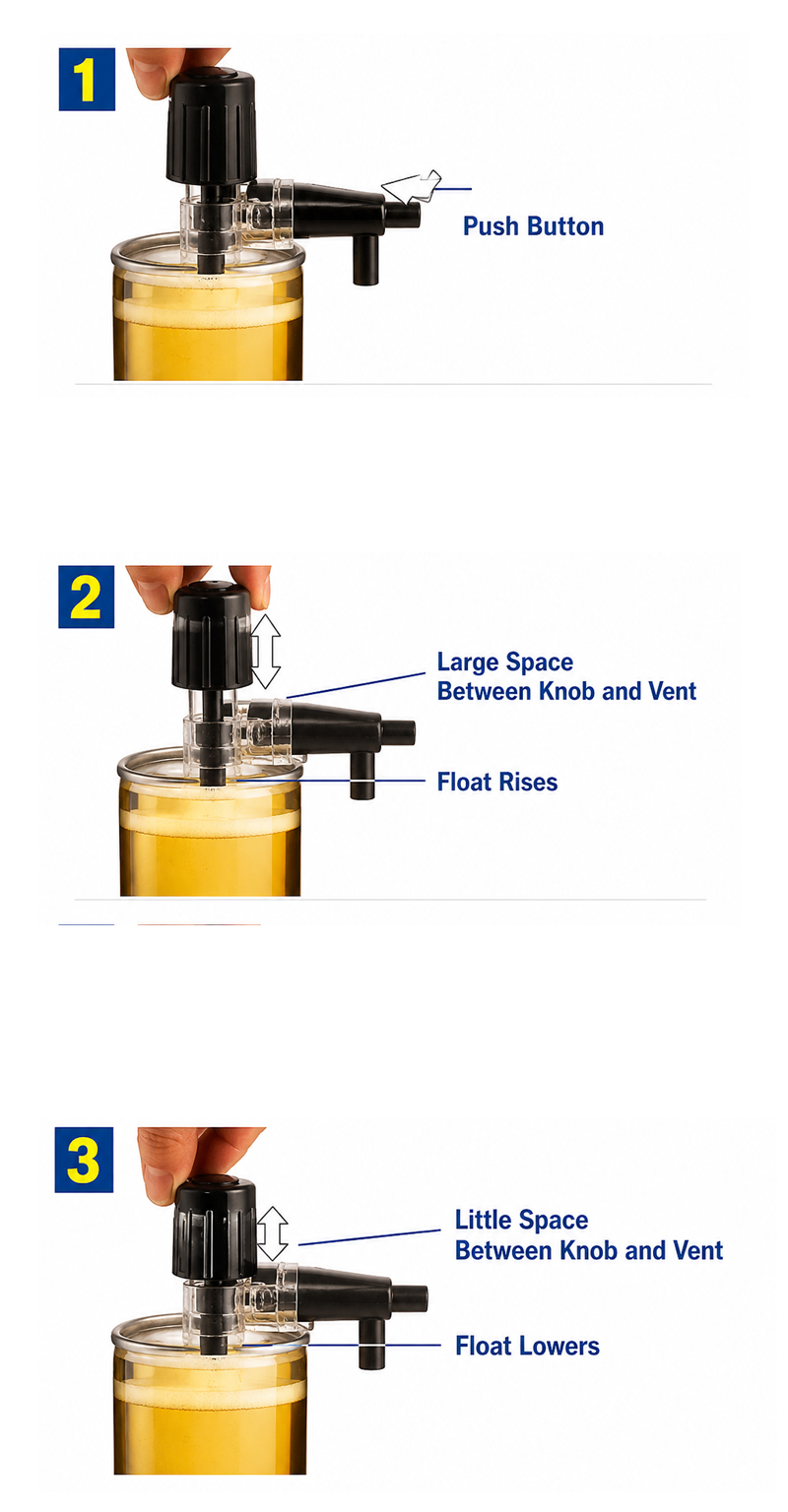

- Beer flow is quickly restored after keg changes with a simple twist operation.
- Fast installation in under five minutes.
- Non-intrusive design installs directly onto the keg connector without cutting beer lines or modifying the system.
- Easily disassembled for cleaning and servicing.
- Cleaning solutions can flow through the unit in either direction. Can be locked in the open position during line cleaning.
Benefits Of Using Beer Fobs

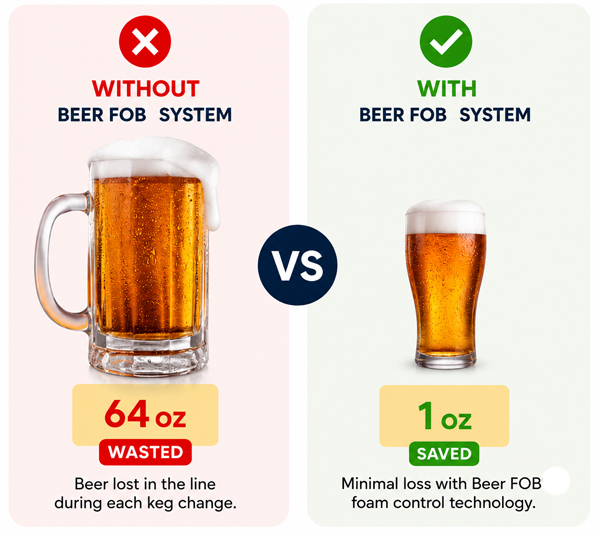

Reduce Beer Waste
Stops beer flow instantly when a keg empties, keeping supply lines full of beer and reducing foam loss during keg changes.
- Average savings of approximately one pitcher per keg.
- Greater savings on long-draw systems such as stadiums, hotels, airports, and large bars.
Reduce CO₂ & Beer Gas Usage
Keeps lines filled with beer instead of gas, reducing wasted CO₂ or mixed gas..
Faster Keg Changes
No need to clear foam and gas from the lines before pouring beer.
- Faster service
- Reduced downtime
- Improved efficiency
Accurate Flow Metering
Ideal for:
- Portion control systems
- Flow meters
- Automated beverage systems
Prevents gas from affecting calibration and volume readings.
Cleaner Beer Lines
Keeping lines full of beer reduces air exposure, helping minimize:
- Beer stone
- Sludge
- Contamination
Resulting in cleaner lines and fresher tasting beer.
BEER FOBs SAVINGS CHART
Foaming at the end of a keg and when starting a new keg cost bar operators profit from beer wastage at keg change over. Since the DFC 9500 / DFC 9600 keeps the supply lines full during keg change over, this waste and subsequent loss of profit is eliminated. Average potential savings per keg change are illustrated below.
| Using a 3/8 inch Supply Line | |
| 10 ft | 6 oz |
| 30 ft | 18 oz |
| 100 ft | 50 oz (2.5 pints) |
| 150 ft | 75 oz (Almost 4 pints!) |
| Kegs/month | Length of beerline(ft) | |||
| 25' | 50' | 100' | 150' | |
| 40 | $40 | $80 | $160 | $480 |
| 60 | $60 | $120 | $240 | $360 |
| 80 | $80 | $160 | $320 | $480 |
| Beer wasted per month($) | ||||
CONTACT US
BASE CONFIGURATIONS
The base configurations are:| F10/M10 | G5/8'' female inlet and a G5/8'' male outlet. This base is known as a "Keg Mount Base" |
| F8/M8 | 1/2 ''female inlet and a 1/2 ''male outlet. This base was designed to be used on MicroMatic tapping heads. This base is also known as a "Keg Mount Base" |
| M10/M10 | G5/8 ''Male inlet and outlet. This base is known as a "Wall Mount Base" |
| FJG6/ FJG6 | 3/8'' John Guest SpeedFit on the inlet and the outlet. This base accepts 3/8 ''O.D. tubing. This base is also a "Wall Mount Base" |
| F8/FJG6 | 1/2'' female inlet with 3/8'' John Guest SpeedFit on the outlet. This base is also called a "Keg Mount Base." |
| F10/FJG6 | G5/8'' female inlet with 3/8'' John Guest SpeedFit on the outlet. This base is also called a "Keg Mount Base." |

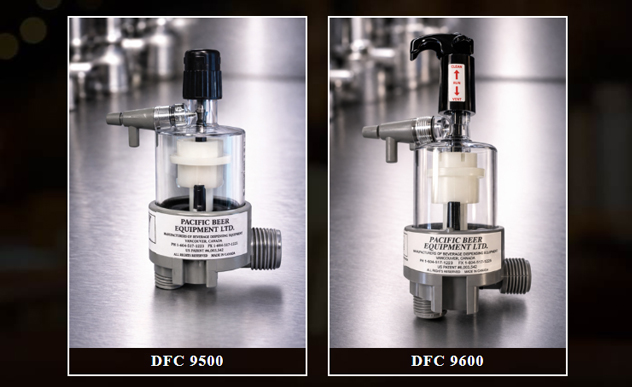

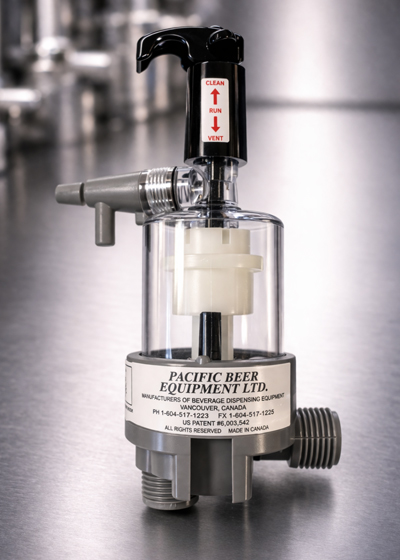

PACIFIC BEER EQUIPMENT’S DFC9500/DFC9600
The DFC 9500 & DFC 9600 can save an average of one pitcher of beer per keg in a typical long-draw system. and when you're talking about larger venues like stadiums, airports, and hotels, those savings can really add up.
SAVINGS CHART
Foaming at the end of a keg and when starting a new keg cost bar operators profit from beer wastage at keg change over. Since the DFC9500/DFC9600 keeps the supply lines full during keg change over, this waste and subsequent loss of profit is eliminated. Average potential savings per keg change are illustrated below
.| Using a 3/8 inch Supply Line | |
| 10 ft | 6 oz |
| 30 ft | 18 oz |
| 100 ft | 50 oz (2.5 pints) |
| 150 ft | 75 oz (Almost 4 pints!) |
| Kegs/month | Length of beerline(ft) | |||
| 25' | 50' | 100' | 150' | |
| 40 | $40 | $80 | $160 | $480 |
| 60 | $60 | $120 | $240 | $360 |
| 80 | $80 | $160 | $320 | $480 |
| Beer wasted per month($) | ||||
YEAR WARRANTY
Your new DFC9500/DFC9600 is warranted for 5 YEARS from the date of original purchase against all defects in workmanship and/or materials. Parts that prove defective will be either repaired or replaced at our option. The right is reserved by the manufacturer to replace the whole product in lieu thereof. The warranty does not apply if the damage occurs because of accident, improper handling, shipping damage, abuse, misuse, unauthorized repairs made or attempted and cleaning methods not approved by the manufacturer. This warranty is in lieu of any other warranty either expressed or implied. If service is required, please contact your nearest authorized distributor/installer of the DFC9500/DFC9600
Cheers! Salute! PROSIT!
SKAL! NaZdorovje!
Bar and restaurant owners love it because it saves them beer and CO2. Bartenders and servers love it because they're serving beer within seconds of a keg change. Customers love it because they don't have to wait for beer.
No wonder the DFC 9500 / DFC 9600 has made friends around the world. People in the bar/restaurant industry have realized that the DFC 9500 / DFC 9600 is a must on every keg. Since 1992, the DFC 9500 / DFC 9600 has become attached to kegs and mounted on cellar walls all over the world.
Around the world, people are toasting the
best bar invention since beer itself.
“The DFC 9500 is being used in every new installation as standard equipment. It is easy to install, simple to operate, and of great return for cost recovering.”
“It allows you to run your beer right out. It’s then a simple matter of changing the DFC 9500 onto a fresh Keg, avoiding wastage and having to worry about air in the beer lines.”
“Compact, simple to operate. Positive results have paved the way for success of the DFC 9500 in Japan.”
“Wasted beer has been reduced to just a few ounces per keg with the DFC 9500. It’s simple to operate and highly effective.”
“Since purchasing the DFC 9500 and analyzing the sales figures from 9000 kegs of beer, we found that they have saved us about 360 kegs of beer or approximately 4% of overall cost!”
“Based on the use of the DFC 9500, San : Francisco Airport calculates their annual cost savings on draft beer will be $27,248. The retail sales equivalent of that amount is $173,560.”
